Answer Construction Question 21
Question 21: With reference to collision bulkhead explain the following using sketches as required:
A. Purposes of collision bulkhead.
B. Construction of collision bulkhead.
C. Regulations governing the position and construction of such a bulkhead.
Answer:
A. The purpose of the collision bulkhead is to protect the ship from
sinking by complete loss of reserve buoyancy in the advent of a head-on
collision. It also protects the holds and cargo positioned after of the
bulkhead.
B.
The number of bulkheads in a ship depends upon the length of the ship
and the position of the machinery space. Each ship must have a collision
bulkhead at least one twentieth of the ship's length from the forward
perpendicular, which must be continuous up to the uppermost continuous
deck. The stern tube must be enclosed in a watertight compartment formed
by the stern-frame and the after peak bulkhead which may terminate at
the first watertight deck above the waterline. A bulkhead must be fitted
at each end of the machinery space although, if the engines are aft,
the after peak forms the after boundary of the space. In certain ships
this may result in the saving of one bulkhead. In ships more than 90 to
in length, additional bulkheads are required, the number depending upon
the length. Thus a ship 140 m long will require a total of 7 bulkheads
if the machinery is amidships or 6 bulkheads if the machinery is aft,
while a ship 180 m in length will require 9 or 8 bulkheads respectively.
These bulkheads must extend to the freeboard deck and should preferably
be equally spaced in the ship. It may be seen, that the holds are not
usually of equal length. The bulkheads are fitted in separate sections
between the tank top and the lowest deck, and in the 'tween decks'.
Watertight
bulkheads are formed by plates which are attached to the shell, deck
and tank top by welding. Since water pressure increases with the head,
and the bulkhead is to be designed to withstand such a force, it may be
expected that the plating on the lower part of the bulkhead is thicker
than that at the top. The bulkheads are supported by vertical stiffeners
spaced 760 mm apart. Any variation in this spacing results in
variations in size of stiffeners and thickness of plating. The ends of
the stiffeners are usually bracketed to the tank top and deck although
in some cases the brackets are omitted, resulting in heavier stiffeners.
The stiffeners are in the form of either bulb plates or toe welded
angles. It is of interest to note that since a welded bulkhead is less
liable to leak under load, or alternatively it may deflect further
without leakage, the strength of the stiffeners may be reduced by 15%.
It may be necessary to increase the strength of a stiffener which is
attached to a longitudinal deck girder in order to carry the pillar
load.
The bulkheads are tested for watertightness by hosing them using a pressure of 200 kN/m1.The test is carried out from the side on which the stiffeners are attached. It is essential that the structure should be maintained in a watertight condition. If it is found necessary to penetrate the bulkhead, precautions must be taken to ensure that the bulkhead remains watertight. The after engine room bulkhead is penetrated by the main shaft, which passes through a watertight gland, and by an opening leading to the shaft tunnel. This opening must be fitted with a sliding watertight door.
The bulkheads are tested for watertightness by hosing them using a pressure of 200 kN/m1.The test is carried out from the side on which the stiffeners are attached. It is essential that the structure should be maintained in a watertight condition. If it is found necessary to penetrate the bulkhead, precautions must be taken to ensure that the bulkhead remains watertight. The after engine room bulkhead is penetrated by the main shaft, which passes through a watertight gland, and by an opening leading to the shaft tunnel. This opening must be fitted with a sliding watertight door.

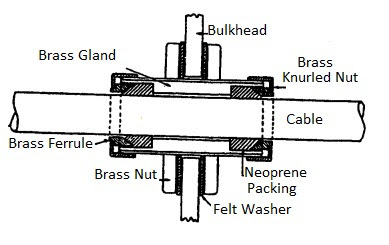

When pipes or electric cables pass through a bulkhead, the integrity of the bulkhead must be maintained.
C. Regulation regarding collision bulkhead are given in SOLAS-II-1 regulation 12.1
a. The bulkhead is watertight from the bottom of the ship, upto the main deck.
b. The collision bulkhead should be located within 0.05L or 10m whichever is less from the forward perpendicular.
c. No openings are allowed like doors, manholes, access openings, ventilation ducts etc.
d. Single pipe line is allowed to penetrated through the collision bulkhead for filling and emptying of fore peak tank.
a. The bulkhead is watertight from the bottom of the ship, upto the main deck.
b. The collision bulkhead should be located within 0.05L or 10m whichever is less from the forward perpendicular.
c. No openings are allowed like doors, manholes, access openings, ventilation ducts etc.
d. Single pipe line is allowed to penetrated through the collision bulkhead for filling and emptying of fore peak tank.
